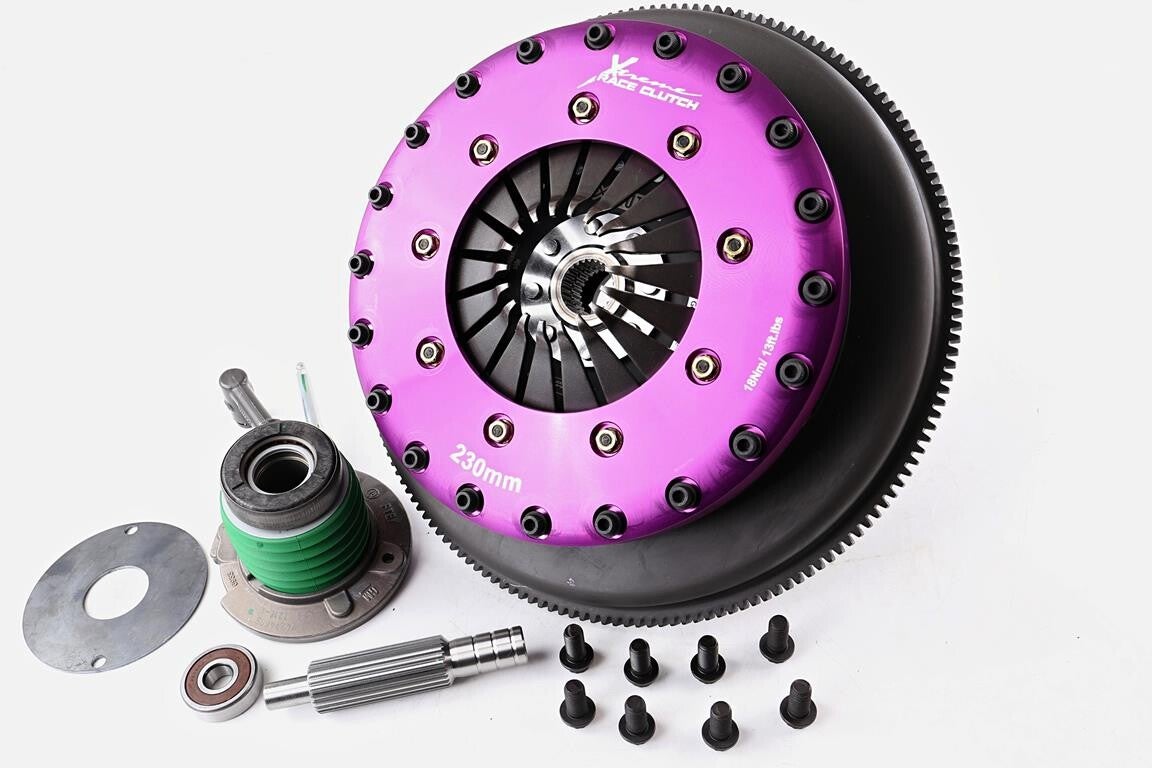

CHEVROLET CAMARO 230mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel & CSC 1800Nm

€2,522.06

Xtreme Clutch 230mm twin plate kit

The Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required.



The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.

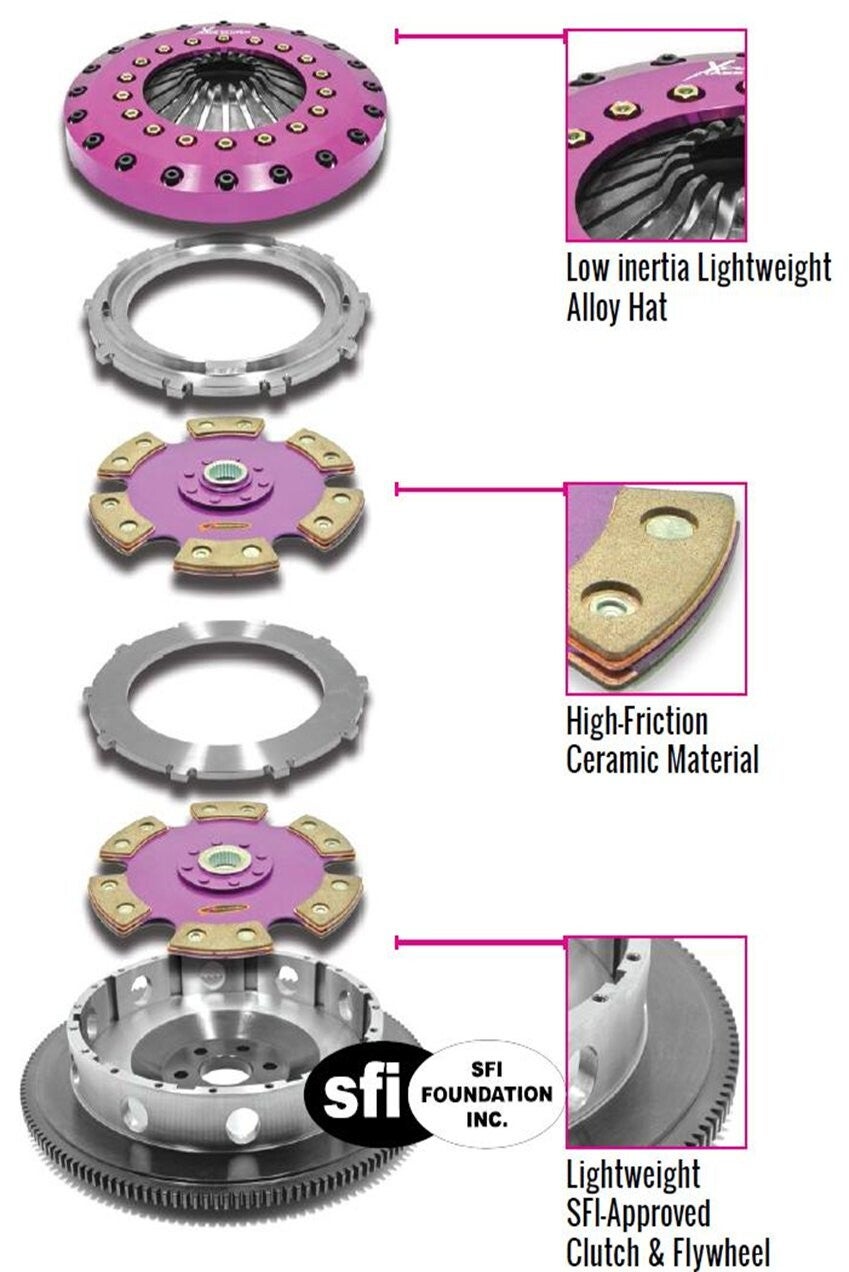

Product Features:

  • Torque capacity 1800Nm
  • Kit contains everything you need for a successful installation + accessories
  • Push type billet alloy cover Low pedal effort
  • 4140 Chromoly pressure & intermediate plates
  • Chromoly adapter ring
  • Low inertia
  • Serviceable components
  • SFI certified design



TECH. INFO

APPLICATIONS

  • Clutch Disc Diameter (mm)230
  • Clutch Disc Spline Count26
  • Clutch Disc Spline Diameter (mm)28.6
  • Torque (Nm)1830
  • Flywheel Step
  • DesignTwin Plate
  • StageMultiplate - track use only
  • Tech Bulletins
  • Clamp Load
  • Recommended forMotorsport
  • Ring Gear Tooth count
  • Additional infotmation
  • Weight [KG]:21.5

CHEVROLET
CAMARO
2017.01-
6.2
LT4(376CUV8) 6162 Petrol 485 kW 659 BHP (2017.01 -)
CHEVROLET
CAMARO
2019.01-
6.2
LT4(376CUV8) 6162 Petrol 477 kW 649 BHP (2019.01 -)
